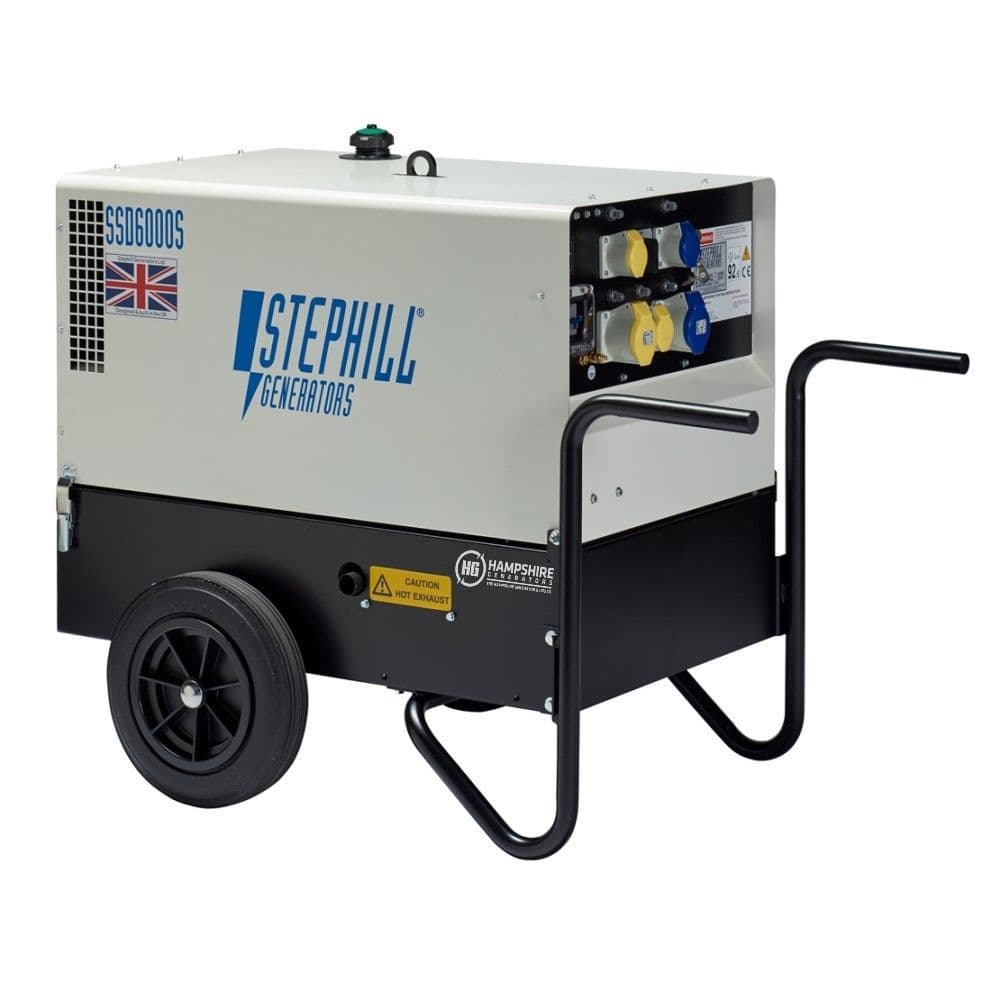

Stephill SSD6000S 6 kVA Super Silent Diesel Generator

From the SS (Super Silent) diesel generator series, the Stephil SSD6000S is reliability economical thanks to the robust Yanmar L100V engine. The Overhead Valve (OHV) engine produces 6 kVA / 4.8 KW of power effortlessly and has been designed to be quiet, rugged and durable. The SS diesel generator range all have close fitting acoustic canopies and come mounted on a two wheel industrial site trolley. The SS range are made for demanding applications such as the construction industry and hire sector.

POWER RATING OF THE STEPHILL SSD6000S

It has a prime power rating of 6 kVA / 4.8 KW.

This canopied portable diesel generator is extremely compact and robust, so can be stored with ease in the smallest of spaces. With a generous fuel tank of 24 L, the Stephill SSD6000S ultra silent diesel generator is perfect for your next project. Plus, its surprisingly light, just 210KG. With an easy-to-use configuration this diesel generator gives you a fantastic balance between performance and price.

IS THE STEPHILL SSD6000S EASY TO START AND USE?

You bet it is simply turn the key and up it starts! The electric key start makes starting straightforward and easy. The industrial two wheel trolley makes moving this generator around a total breeze, also there is a lifting eye. The acoustic canopy lifts up with an aid of a gas strut to give easy access to the engine compartment.

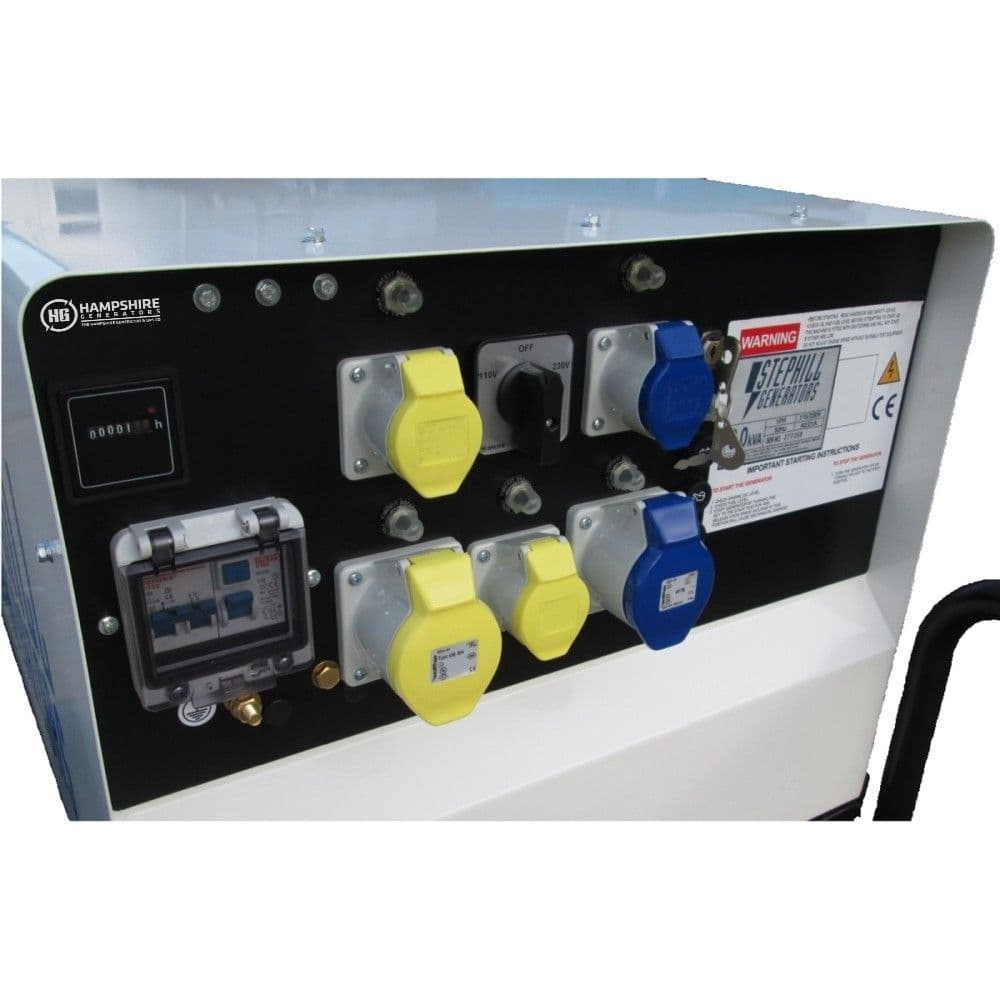

There are 2 x 16A & 1 x 32A 115V plus 1 x 16A & 1 x 32A 230V BS4343 sockets to connect your electrical equipment up to. Also this unit has low oil shutdown, the generator has a reset circuit breaker overload protection.

USING SENSITIVE EQUIPMENT WITH THE ELECTRICAL POWER FROM THE STEPHILL SSD6000S

The power produced by the Stephill SSD6000S enables a smooth voltage output via the brushless smooth waveform alternator.This keeps the 110V / 230v output within tolerance making it safe to use with electronic equipment like PCs, laptops TVs and more besides.

LOW NOISE LEVELS

You might think having a portable diesel generator will be very noisy. Well think again; the Stephill SSD6000S is surprisingly quiet at 59 dBA @ 7 metres.

MAIN FEATURES :

• Frequency Hz 50
• Voltage V 110 / 230
• Phase 1

PRIME POWER RATING :

• 6 kVA
• 4.8 KW

ENGINE SPECIFICATIONS :

• Engine Manufacturer Yanmar
• Model L100V
• Displacement 0.435 Litres
• Engine cooling system Air
• Aspiration Natural
• Operating Speed-Nominal rpm 3000
• Speed governor Mechanical
• Fuel Diesel
• Starting system Electric key start

ALTERNATOR SPECIFICATIONS :

• Type Brushless - Smooth Waveform
• NSM C100 SG
• IP protection 23
• Poles 2
• Frequency Hz 50
• Voltage V 230 / 115

DIMENSIONAL DATA :

• Length (L) mm 1270
• Width (W) mm 785
• Height (H) mm 970
• Dry weight Kg 210
• Fuel tank capacity l 24

FUEL CONSUMPTION:

• Running time @ 75% 17 Hour

NOISE LEVEL :

• Guaranteed noise level (LWA) dB(A) 84
• Noise pressure level @ 7 m dB(A) 59

SOCKET TYPE :

• 1 x 16A 230V
• 1 x 32A 230V
• 2 x 16A 115V
• 1 x 32A 115V
