Lumag VH500A 500kg Track Barrow with Petrol Loncin Engine and Hydraulic Tip

LumagItem Code: VH500
No reviews

Price:
Sale price£5,499.00
Stock:
In stock

Description

Available on back order (Built to order)

 The Lumag VH500 track barrow is the entry-level hire quality track barrow. Fully hydrostatic, robustly made machine. This machine was made with durability and ease of use in mind. It is propelled by a top of the range hydraulic pump. This machine will offer years of great service. Fitted with a Loncin 252cc engine that produces 7HP.

Lumag VH500A 500kg 7HP Petrol Track Barrow / Mini Dumper with a Loncin Engine

The Lumag VH500 track barrow is the entry-level hire quality track barrow. Fully hydrostatic, robustly made machine. This machine was made with durability and ease of use in mind. It is propelled by a top of the range hydraulic pump. This machine will offer years of great service. Fitted with a Loncin 252cc engine that produces 7HP.

These professional dumpers are ideal for transporting materials such as sand, salt, gravel, building materials, garden waste, stone, wood etc. The great advantage is there with a width, with a width of approximately 70 cm these dumpers should fit through the majority of gates and narrow paths.

They tracked and offer very low ground pressure. The rubber tracks provide excellent grip which makes these dumpers particularly good for use on steep slopes and rough/uneven terrain. The hydraulic drive ensures trouble-free operation as there is no wear on cables, pulleys, couplings or belts.

  • Engine - 4 stroke petrol engine
  • Displacement - Engine size 252cc
  • Engine power - 5.2 kw/h 7HP
  • Max speed - 3,600 rpm
  • Starting device - Reversing starter
  • Weight - 310 Kgs
  • Drive type - Hydraulic
  • Steering - Fully hydraulic / control valve
  • Tilting container (LxWxH) - 855 x 680 x 550 mm
  • Max load - 500 Kgs
  • Volume hollow - approx. 0.25 m³

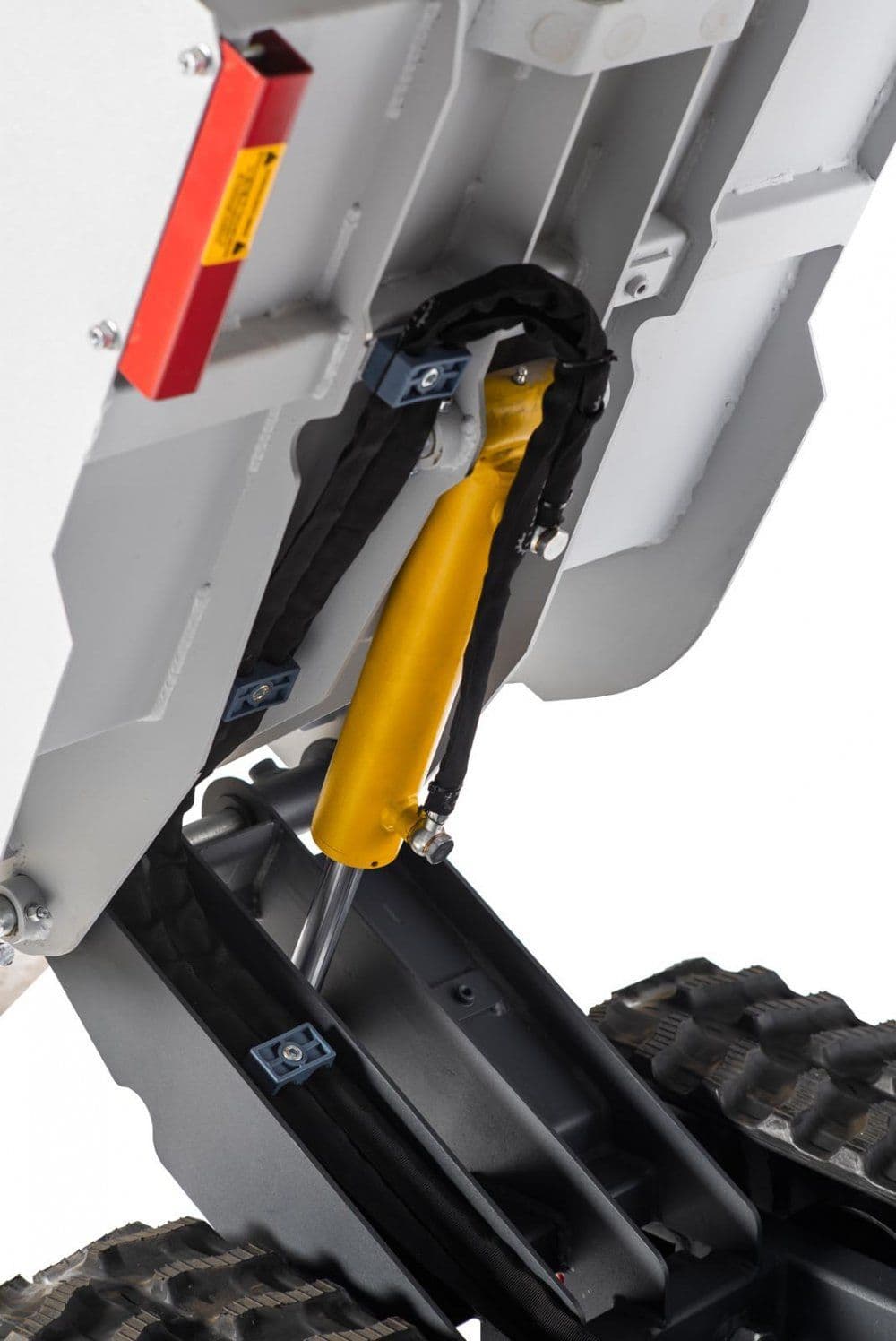

  • Tilting device - Hydraulic, tiltable forwards
  • Hydraulic pumps - 2x10l / min (at 3,000 rpm)
  • Working pressure max - 180 Bar
  • Hydraulic motor - Each max. 720 Nm at 180 bar
  • Working speed (stepless / hydrostatic) forwards / backwards - Max. 4.5 / max. 3.2 km / h
  • Ground clearance - 65mm
  • Max. Gradeability - 15°
  • Dimension caterpillar - H / 255, W / 180 mm
  • Dimensions (LxWxH) - 1495 x 735 x 1224 mm
  • Packaging dimensions (LxWxH) - 1550 x 850 x 1250 mm

Warranty

All Tracked Barrows are covered by a 2-year domestic warranty (1 year for commercial).

Technical specification:

Specification

Engine 1-Cylinder 4-stroke OHV LONCIN engine
Engine displacement 252cc
Power 7HP or 5.2kW
Max speed 3600 RPM
Starting device Reversing starter
Weight 310 Kgs
Drive type Hydraulic
Steering type Fully hydraulic / control valve
Tilting container (LxWxH) 855 x 680 x 550 mm
Ma load 500 Kgs
Volume hollow Approx. 0.25 m³
Tilting device Hydraulic, tiltable forwards
Hydraulic pumps 2x10l / min (at 3,000 rpm)
Working pressure max 180 Bar
Hydraulic motor Each max. 720 Nm at 180 bar
Working speed (stepless / hydrostatic) forwards / backwards Max. 4.5 / max. 3.2 km / h
Ground clearance 65mm
Max. Gradeability 15 °
Dimension caterpillar H / 255, W / 180 mm
Dimensions (LxWxH) 1495 x 735 x 1224 mm
Packaging dimensions (LxWxH) 1550 x 850 x 1250 mm
