Lumag RPi31DE 30.5KN 20' Diesel Reversible Compactor Plate

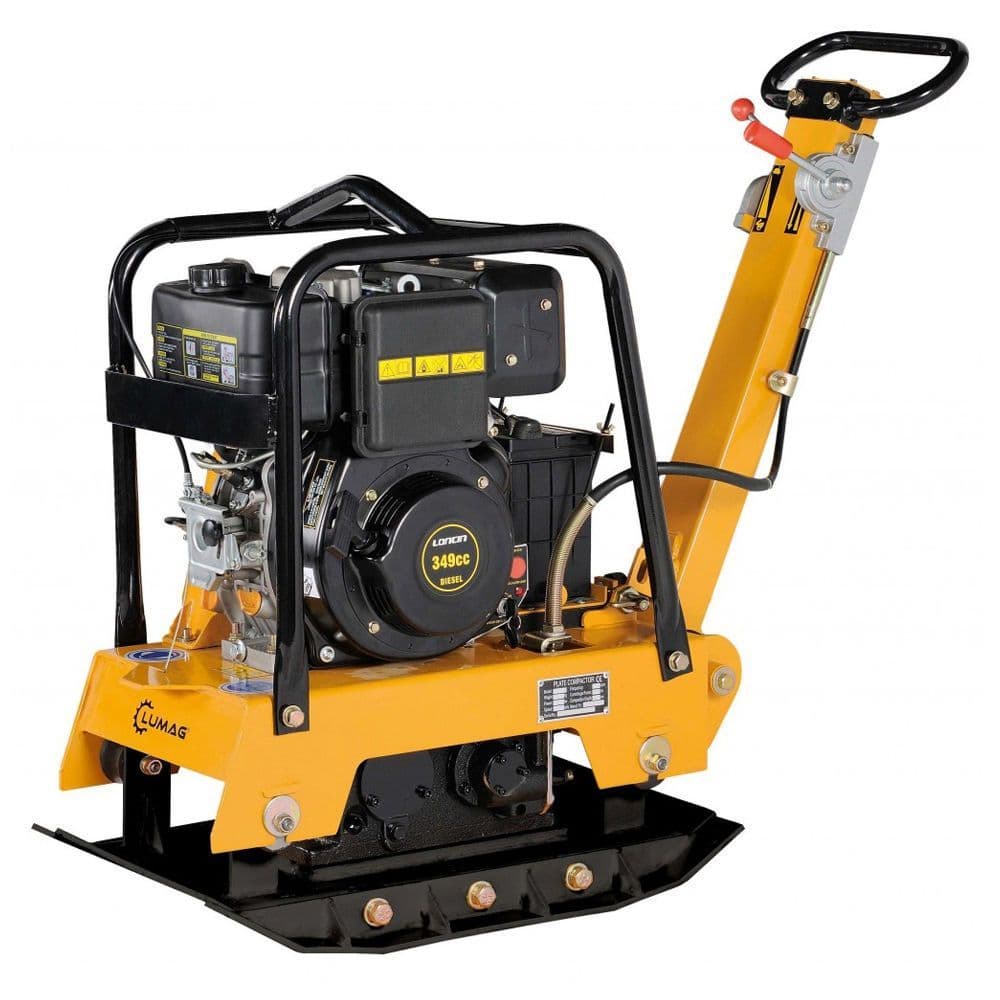

The Lumag RPi31DE is a Diesel forward/reverse compactor plate. This machine is powerful and manoeuvrable making it great for large paved areas, trench and ground works. The plate size can be increased and decreased by the removal of the side extension plates. Fitted with the excellent Loncin engine and a cast iron base plate.

FREE WHEEL KIT & PAVING PAD INCLUDED.

Key Features:

• The vibrating plate with forward and reverse is the ideal tool for consolidating the substrate and for vibrating small to medium-sized areas. Especially applicable in gardening and landscaping, in the production of sidewalks and terraces, in laying paving, in building foundations, in trench and sewer construction, as well as for compacting composite paving .
• It is much more manoeuvrable and agile than a vibrating plate that only runs forwards.
• Stepless regulation of the movement in both directions.
• Robust, long-lasting cast base plate for particularly precise work
• Diesel engine with pre-glow function and electric start Protective frame and widening
• Equipped with a V-belt protected on all sides.

Technical Specification:

• Motor / Drive LC 178FD diesel engine
• Engine Power 4.9 kW at 3,600 rpm
• Displacement 349 cc
• Fuel Tank 3.5 l
• Plate Length 700 mm
• Plate Width 360 mm
• Mounting Plate 700 x 100 mm
• Frequency 67 Hz
• Centrifugal force 30.5 kN
• Area Performance approx. 450 m² / hour
• Max. Feed 25 m / min.
• Vibration Shocks 4,810 vpm
• Compaction Depth 50 cm
• Max. Permissible inclination of the motor 20°
• Sound power level LWA 108 dB (A)
• Operating weight 199 kg
• Packaging dimensions (LxWxH) 810 x 425 x 1010 mm
