Description

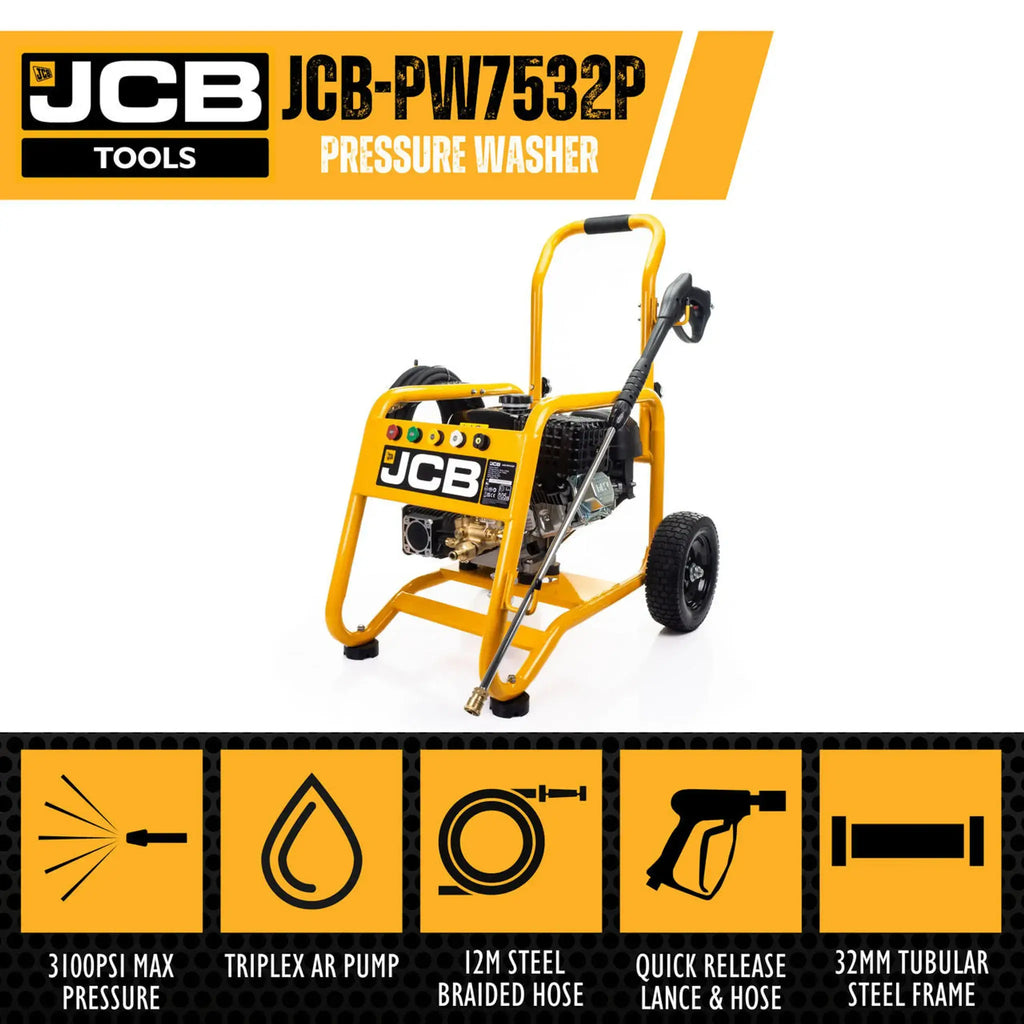

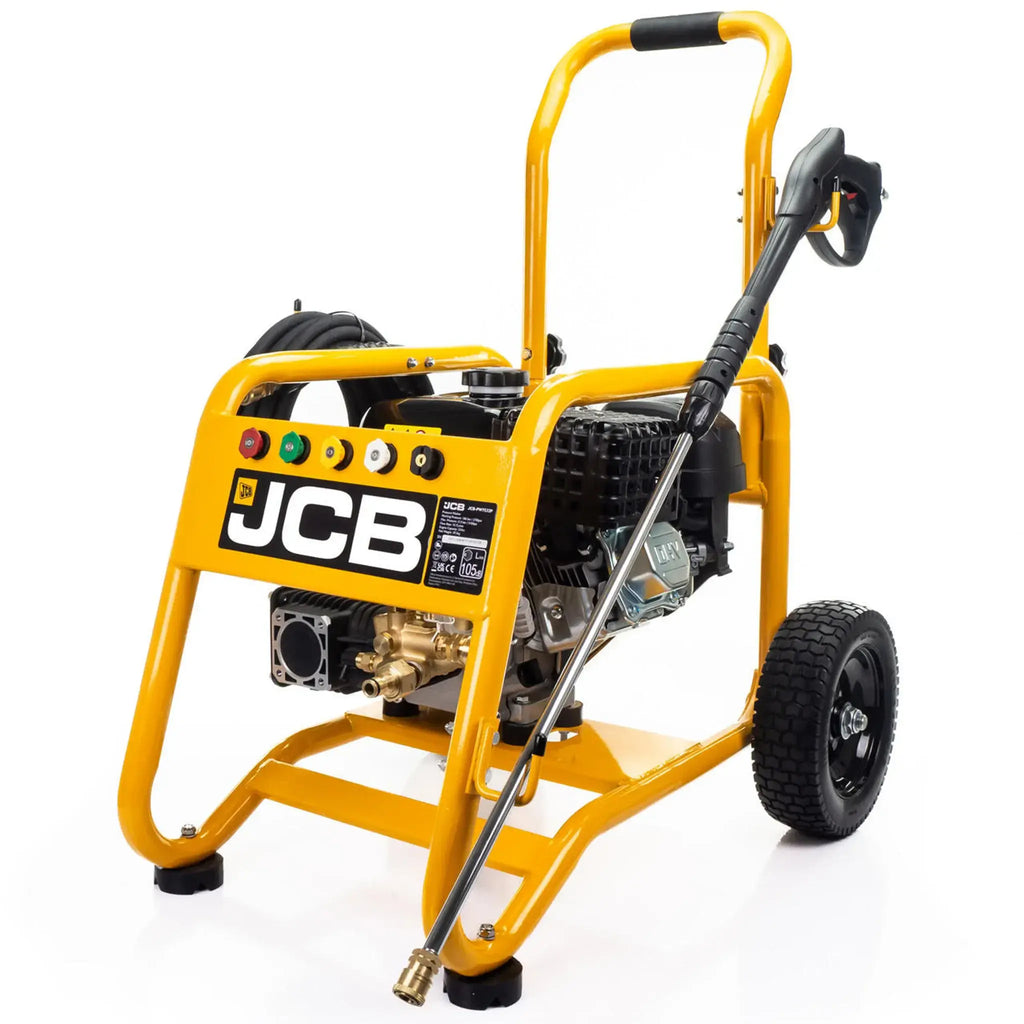

JCB-PW7532P PETROL PRESSURE WASHER
Introducing the JCB 3100 psi / 213 bar petrol pressure washer, powered by the JCB 224cc 4-stroke, 7.5HP high-torque, Euro V low-emissions recoil start petrol engine. Made for hard work to handle your toughest cleaning jobs with ease.
The JCB-PW7532P delivers an impressive 3100psi / 213 bar pressure and a flow rate of 10.7L/min from its commercial grade triplex pump, with ceramic pistons and a brass head. Manufactured by industry leading manufacturer Annovi Reverberi (AR), the pump has a built in unloader and thermal relief valves.
The long 12m, (39ft), hose supplies high pressure performance making this ideal for cleaning large areas such as patios, driveways, estates/houses, agricultural machinery and trucks etc. The long high pressure hose means you're not continuously moving the machine.
POWERFUL 7.5HP JCB PETROL ENGINE
The JCB 224cc 4-stroke petrol engine has tremendous low & mid range torque so the jet washer does not have to be operated at maximum revs while cleaning. This makes for a more pleasant, quieter user experience and reduces fuel consumption, whilst promoting long engine life.
The engine should be filled with 600ml of SAE30 or 15w40 engine oil. To protect against low engine oil level, there is an engine cut out switch which operates if the engine oil is too low.
The washer comes with 5 quick connect nozzles (0°, 15°, 25° 40° and a low pressure detergent spray nozzle), which can be changed quickly and effortlessly by sliding the outer collar back on the Q/R connector on the lance.
Quick connectors are faster and easier to use than threaded connectors. With a quick connector, you can simply snap the hose or attachment into place, without having to fumble with threads or wrenches. This can save you time and effort, especially if you frequently switch between different attachments or hoses.
The JCB-PW7532P features a robust, 32mm tubular steel frame with a soft-grip handle that can be removed for storage space and reduces the likelihood of damage when in transit. Its anti-vibration feet provide all round protection and stability and reduce noise output whilst in use.
Its also fitted with tough puncture proof tyres for easy movement across rough terrain, which makes this a truly portable pressure washer. As the tyres are not air filled, you will never suffer with down time due to a flat!

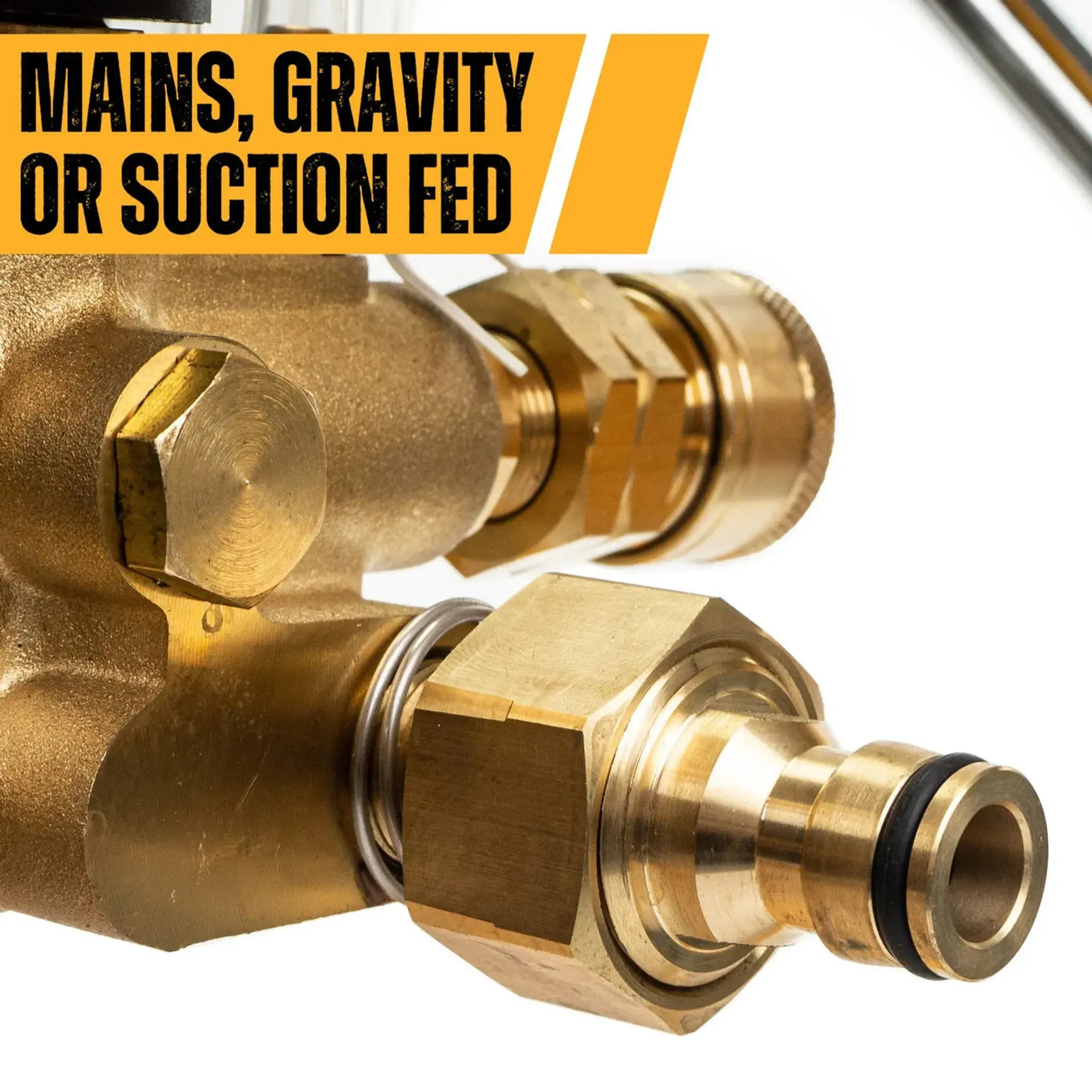

MAINS, GRAVITY OR SUCTION FED USE
This cold water pressure washer can be mains fed, gravity fed or suction fed, tested up to a height of 1.5m vertically (suction use).
If drawing uphill form a water butt/water source, we suggest you use the following tips:
- Ensure that the suction hose is 100% sealed against air leaks any air drawn into the suction side of the pump will prevent the machine from priming.
- Connect the pressure washer to a mains water supply and run for 1 minute to free up any sticking valves.
- Position the pressure washer as close to the water supply as possible.
- On startup, to aid priming, prime the pump before connecting the high pressure hose to the pump outlet.
3 YEAR WARRANTY
For added peace of mind, this power washer is covered by a JCB 3 year platinum warranty* / 1 year commercial warranty* (terms apply) including full parts and service backup to maintain your pressure washer for years to come.
Specifications:
| MODEL | JCB-PW7532P |
|---|---|
| START METHOD | Recoil |
| FUEL/POWER SOURCE | Petrol |
| POWER (HP/KW) | 7.5/5.59 |
| MAX PRESSURE (PSI/BAR) | 3100/213 |
| WORKING PRESSURE (PSI/BAR) | 2700/186 |
| HOSE LENGTH (M) | 12 |
| MAX FLOW RATE (LITRES/MINUTE) | 10.7 |
| DRIVE TYPE | Direct Drive |
| ENGINE TYPE | 4-Stroke 224cc EURO V |
| ENGINE SIZE (CC) | 224 |
| ENGINE OIL | SAE 10W30 or 15W40 |
| ENGINE OIL CAPACITY (ML) | 600 |
| FUEL CAPACITY (L) | 3.6 |
| NO LOAD SPEED (RPM) | 3300-3500 |
| LOAD SPEED (RPM) | 3600-3800 |
| PUMP TYPE | Annovi Reverberi RSV3G31 Triplex AR (Brass Head) |
| GRAVITY FEED | Yes |
| MAINS SUPPLY | Yes |
| DRAW FROM BARREL | Yes |
| DETERGENT CAPABILITY | Yes |
| FRAME MATERIAL | 32mm Tubular Steel |
| SOUND LEVEL LWA (DB) | 105 |
| GROSS/PACKAGE WEIGHT (KG) | 43.8 |
| NET/ASSEMBLED WEIGHT (KG) | 39 |
| ASSEMBLED DIMENSIONS (H X W X L) (MM) | 750x625x930 |
| PACKAGED DIMENSIONS ( H X W X L) (MM) | 675x460x930 |
| WARRANTY | 3 Years (Home) / 1 Year (Commercial |
| EAN | 5059608313031 |
