Description

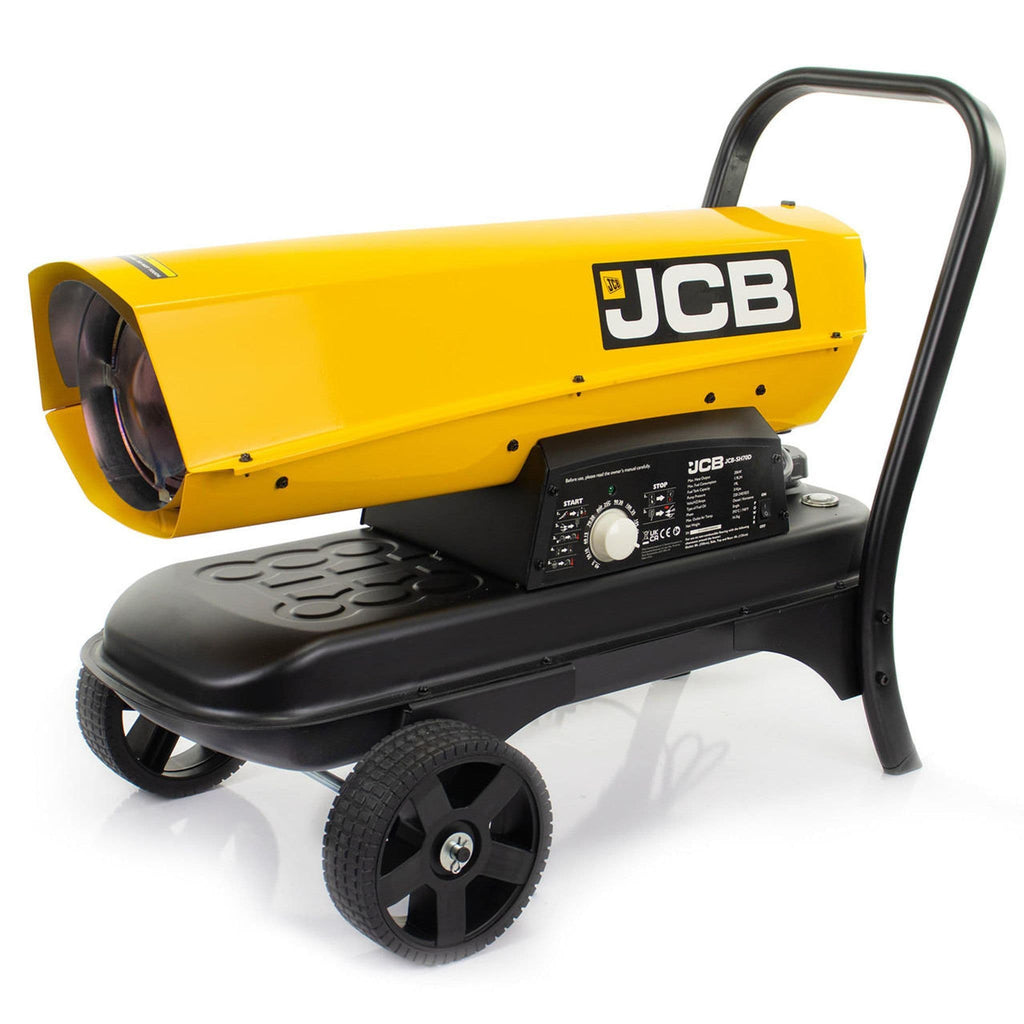

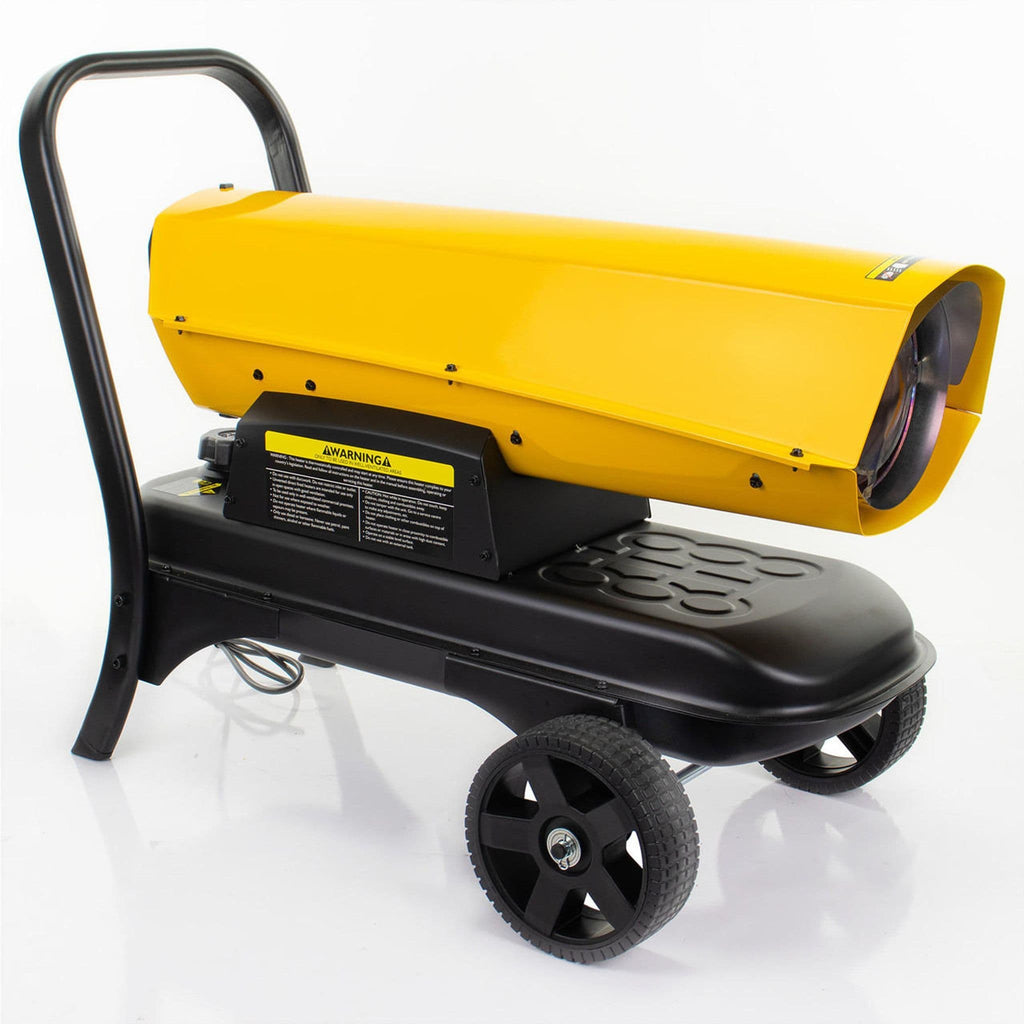

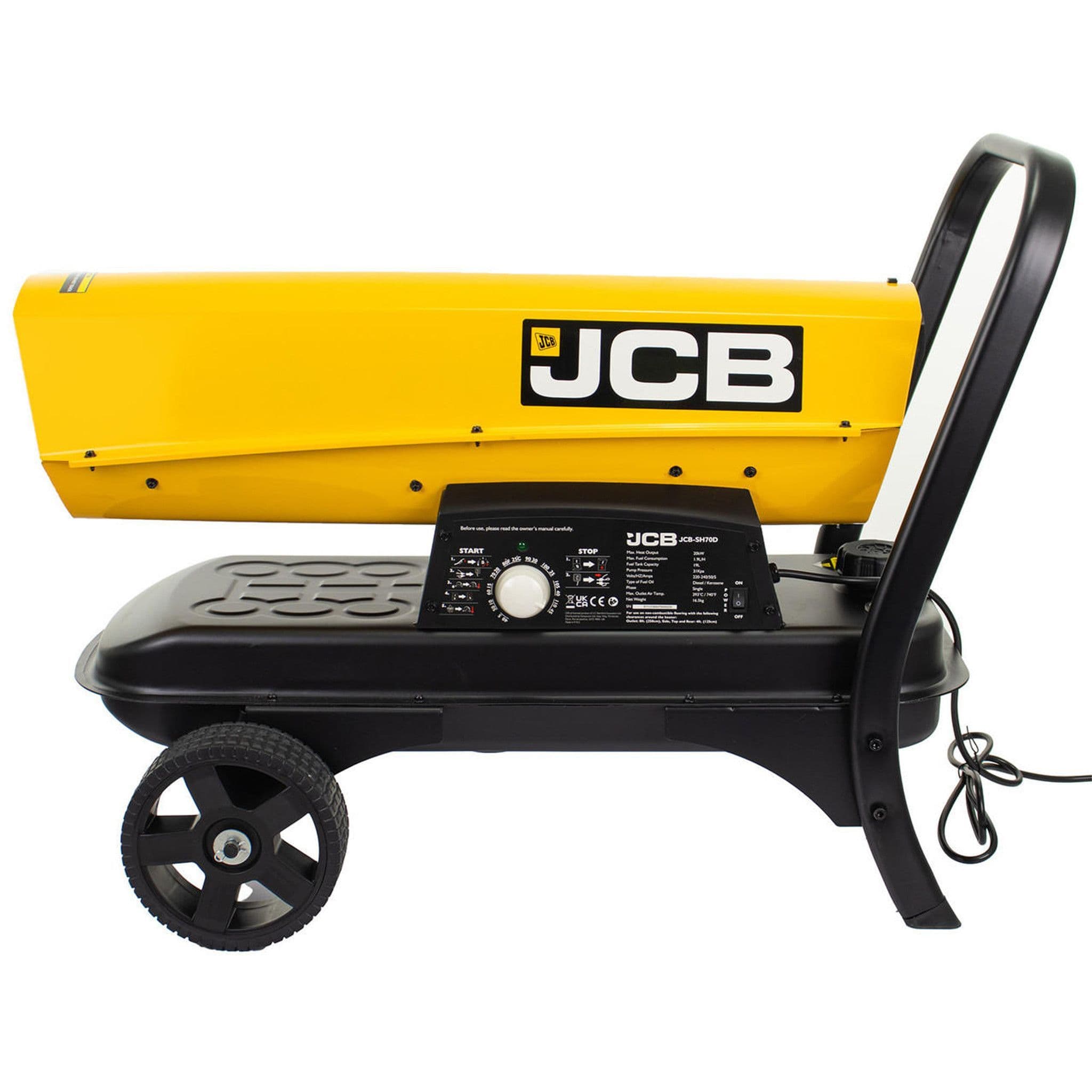

JCB 70,000BTU / 20kW Diesel Space Heater, 496m³ Coverage, Kerosene or Diesel, Thermostat | JCB-SH70D
The JCB-SH70D is a powerful and low consumption, diesel or kerosene space heater designed for industrial and commercial heating settings. Capable of producing an impressive maximum 20kW / 68,243 BTU heat output, this JCB space heater is ideal for commercial spaces such as factories, workshops, distribution centres, building sites, MoT garages, car mechanics and repair centres, tyre fitters and agricultural buildings, barns or workshops.
Substantial Heat Output up to 400m3
Suitable for placement in the open and semi-open, this JCB space heater utlilises diesel combustion, which means the JCB-SH70D can deliver a substantial maximum heat output of up to 20KW / 68,243 BTU, which will easily heat up large areas up to 496m3.
Not only that, the machines built-in flame cone enables the JCB-SH70D to disperse and direct the heat it generates to targeted areas for consistent heating performance.
High Performance, Energy Efficient Heater
Considered as one of the most energy efficient ways to heat large areas, this JCB diesel space combines high performance with low fuel consumption, meaning the JCB-SH70D will operate by using just 1.9 litres of fuel per hour!
The JCB-SH70D also features a built-in thermostat, which allows you to set the temperature to your specific heating needs to help combat the cold conditions and create a comfortable working environment.
Portable and Quick to Manoeuvre JCB Space Heater
For quick and hassle-free operation and transportation, the robust JCB-SH70D, weighing just 16.5kg, comes equipped with two durable front wheels and a sturdy rear handle, making the dependable JCB space heater easy to move around in any working environment.
Offering swift operation, simply fill JCB-SH70Ds easy-to-access fuel-tank, plug its 13 Amp UK plug into a standard UK socket and set your chosen temperature!
What is BTU?
BTU, or, British Thermal Unit is a measure of energy - an alternative measurement to joules. The very basic way to think of a BTU is that 1 BTU is the equivalent of burning a normal-sized wooden match all the way from one end to the other.
The exact measurement of a British Thermal Unit is the amount of heat that it takes to heat one pound (approx one pint) of water by one degree and is measured at the amount of energy to make the 1lb of water heat from 39 degrees Fahrenheit up to 40. (It can take slightly more or less energy to heat water by one-degree Fahrenheit depending upon the starting temperature).
Space Heater Safety
To ensure safe use when operating the JCB space heater, it is strongly recommended that you try to leave around 8ft (2.4 Meters) from the outlet, and 4ft (1.2 Meters) around the sides and top.
In addition to this, only operate the space heater in well ventilated areas, such as; garages with the door open and warehouse areas with shutter doors.
3 Year Long-term Warranty:
For your peace of mind, the JCB-SH70D comes with a comprehensive 3-year warranty* (terms apply). With full parts and service backup, JCB Tools ensures your space heaters remain in excellent condition for years to come.
In the Box: JCB-SH70D Space Heater, User Manual, Wheel mounts, Wheels, Rear Handle, Axle, Screws and Nuts, Cotter Pins and Washers
Specification:
MODEL | JCB-SH70D |
---|---|
START METHOD | Electric |
HEAT OUTPUT (KW / BTU) | 20KW / 68,243 BTU |
MAX OUTLET AIR TEMPERATURE (°C) | 393 |
FUEL CONSUMPTION (L/HR) | 1.9 |
APPROX HEATING AREA (M³) | 496 |
POWER SUPPLY (V) | 230 |
FEATURES | Thermostat |
FUEL | Diesel or Kerosene |
FUEL CAPACITY (L) | 19 |
WHEEL KIT? | Yes |
GROSS WEIGHT (KG) | 18.2 |
NET WEIGHT (KG) | 16.5 |
SOUND LEVEL (DB) | 84 |
FULLY ASSEMBLED DIMENSIONS (H X W X L) (MM) | 619 x 445 x 845 |
PACKAGE DIMENSIONS (H X W X L) (MM) | 485 x 345 x 815 |
PRODUCT TYPE | Space Heater |
WARRANTY (YEARS*) | 3 |
COMMERCIAL WARRANTY (YEARS*) | 1 |
MODEL EAN | 5059608313123 |
IN THE BOX | JCB-SH70D Space Heater, User Manual, Wheel mounts, Wheels, Rear Handle, Axle, Screws and Nuts, Cotter Pins and Washers |
