Description

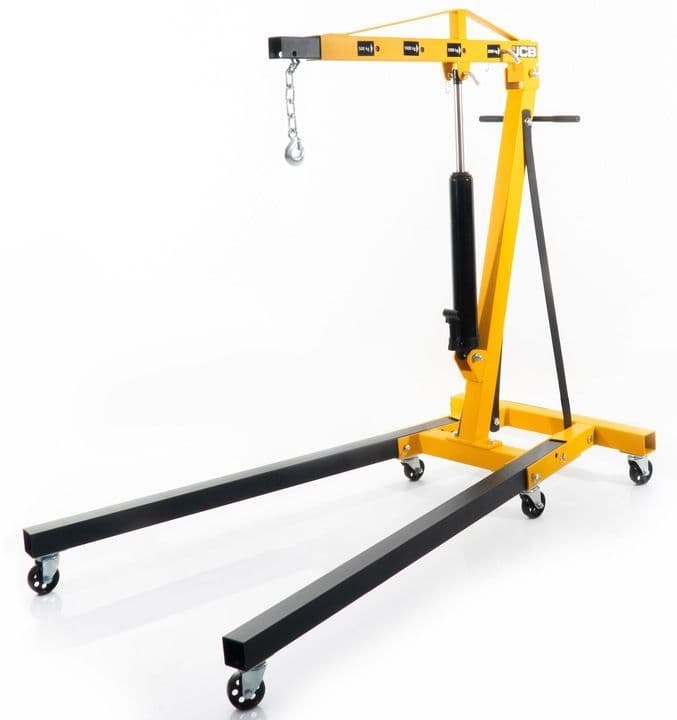

The JCB-TH72004 is a foldable hydraulic workshop crane built with high-quality materials designed to lift and move objects up to 2 tonnes in weight - ideal for removing and installing engines, gearboxes and other associated automotive components.
For heavy-duty lifting, the JCB-TH72004 utilises a heavy-gauge, welded construction with a rugged square tubular steel design, while its hydraulic long ram features a built-in by-pass system to prevent the ram from over-extending for added safety.
The JCB-TH72004 is also fitted with a two-stage hydraulic pump to allow for quick and precise lifting of heavy objects.
For added convenience, the JCB-TH72004 can be easily manoeuvred and positioned thanks to its six swivel castors, while its unique folding design means the crane will take up little space when not in use.
*Please note, this product will be shipped in two packages.
Key Features:
- 2 Tonne Maximum Load Capacity
- Maximum Arm Lift - 260cm
- Adjustable Arm Length ranges from 109 - 164cm
- Hydraulic long ram with built-in by-pass system prevents ram from being over-extended.
- Heavy-gauge, welded construction with rugged square tubular steel.
- Swivel castors for easy manoeuvring and positioning.
- Unique folding design for convenient storage.
- Two-stage hydraulic pump
- Net Weight - 86kg
- Backed by a comprehensive 3-year warranty* (1 year Commercial)*
3 Year Warranty (Terms Apply)
Specification:
| Model | JCB-TH72004 |
|---|---|
| Maximum Load Capacity (kg) | 2000 |
| Maximum Arm Lift (cm) | 260 |
| Maximum Arm Length (cm) | Adjustable from 109 - 164 |
| Net Weight (kg) | 86 |
| Gross Weight (kg) | 92 |
| Packaging Dimensions H x W x L (mm) | 95 x 730 x 880 |
| Packaging Dimensions H x W x L (mm) | 200 x 220 x 1420 |
| Model EAN | 5056485718201 |
