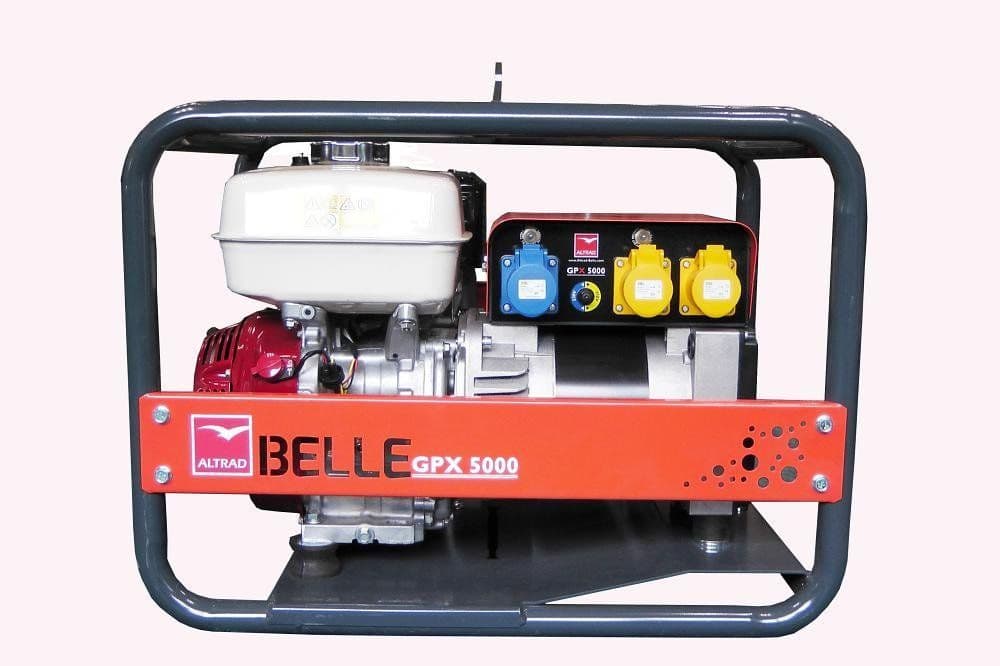

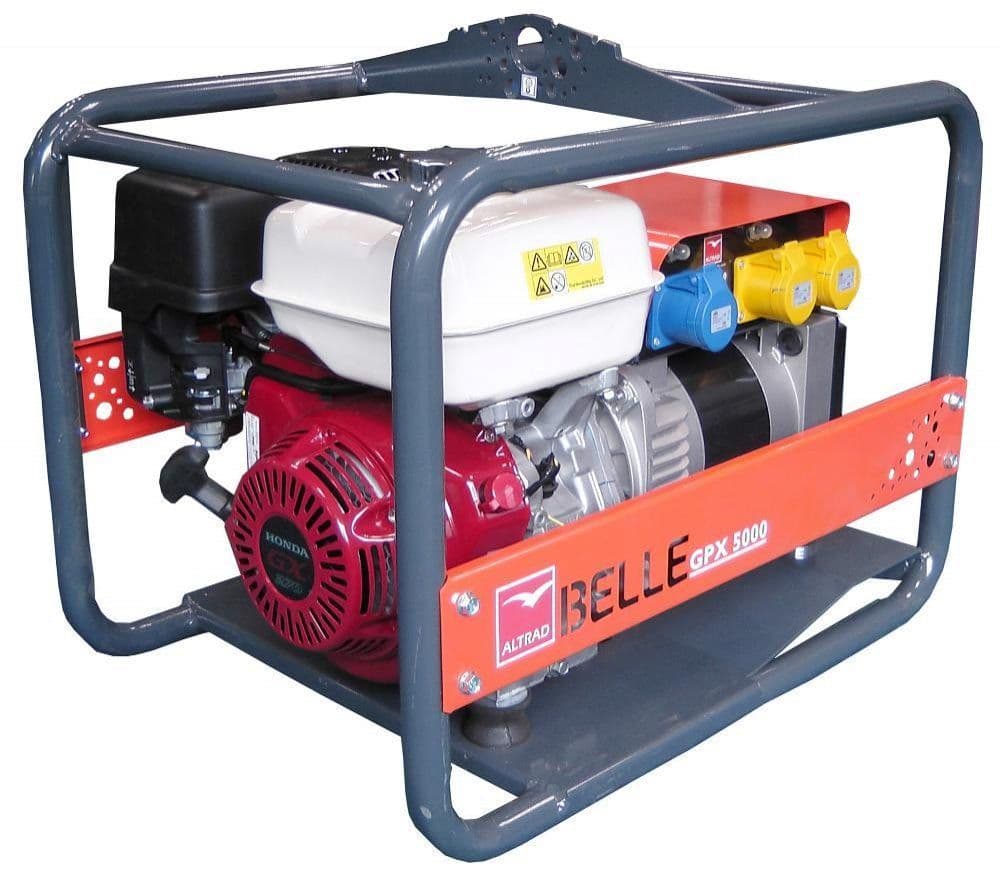

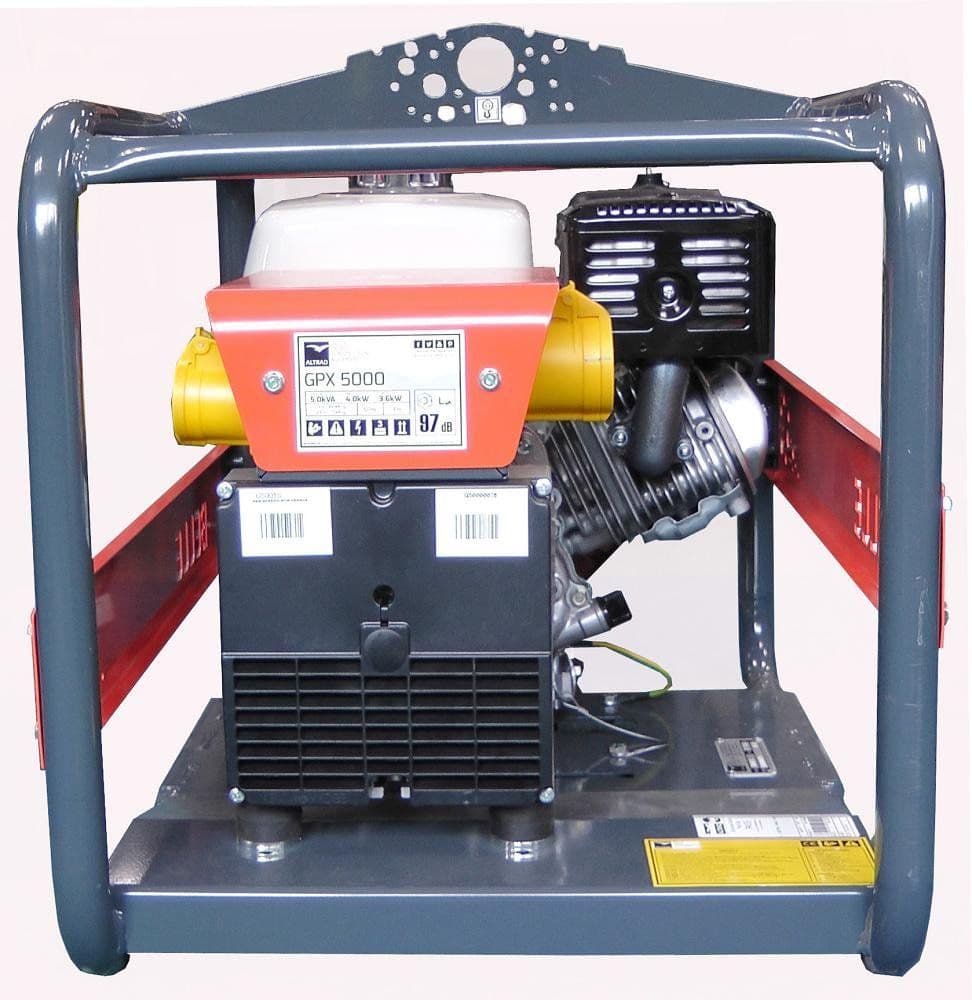

Belle GPX5000 Honda Powered 5kva / 4kw Stackable Petrol Generator

This 5kva / 4kw (3.6kw continuous) generator from Belle is powered by a Honda GX270 petrol engine and is stackable. It has 2 x 110v 16A, 1 x 240v 16A and 1 x 110v 32A sockets.  The engine and alternator are protected from physical damage by the frame and the electrics have full overload protection. Ideal for commercial and hire applications.

Key Features:

• Robust large diameter frame with built-in Engine / Alternator.
• Protection belly plate to aid use on soft ground (N/A to Wheeled version).
• Professional Honda engine with recoil start.
• Low engine oil cut-off.
• High quality, heavy-duty NSM Alternator.
• Stackable frame ('Patent Pending') with single point lifting to reduce enviromental impact and minimize manual handling risk. Complete with securing pin for added safety (N/A to Wheeled version).
• Engine / Alternator side impact protection.
• Durable screw-in sockets.
• Metal covered fuse box.
• Over-sized 4-point Anti-Vibration mounts.
• Rental-proof, robust, steel electrical enclosure.
• Selectable 110v (16A and 32A) or 230v.
• System breakers for 110v & 230v supplies.
• Specifically designed for hire and rental markets.
• Accessible service points

• Fuel Capacity: 5.6L
• Engine Power: @ 3000rpm 6.2hp / 4.6kw
• Rating: @ 0.8 p/f 4kVA
• PRP Rating: 4.0kw
• COP Rating: (Continuous) 3.6kw

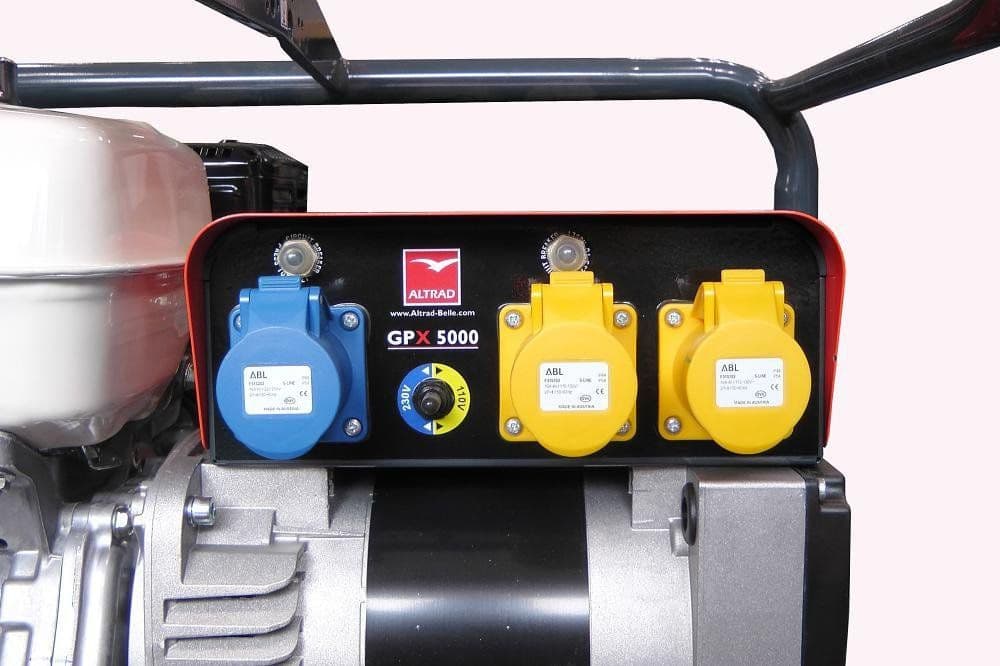

• No of sockets: 110v 16a x 2, 110v 32A and 230v 16a x 1
• Frequency: 50Hz
• Alternator: NSM K100 Range
• Maximum Current: @ 110v 36.4
• Maximum Current: @ 230V 17.4
• Running hours: at @ 90% of COP 2.8Hrs
• Sound Power Level: LWA 96
• Dimensions: Width x Height x Length 512mm x 595mm x 728mm
• Weight: 67kg
